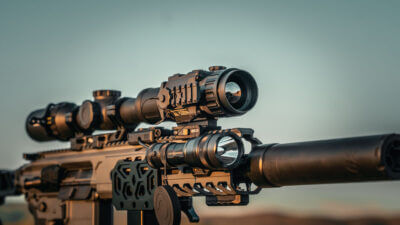

Armasight Operator 640 Thermal Clip-On – Serious Performance for Serious Situations

The more I use clip-on thermals, the more I appreciate what they bring to the table: fast deployment, day-to-night flexibility, and no need to re-zero when you switch from daylight to nighttime operations. The new Armasight Operator 640 1–4x35mm is a rugged, no-compromise clip-on system designed for professional-level use. After spending time behind it, I’m convinced this unit deserves a spot in serious kits.

Thank you for reading this post, don't forget to follow and signup for notifications!

For those unfamiliar, a clip-on thermal like this doesn’t replace your scope. It mounts in front of it, using your day scope’s reticle for aiming. That means you keep your riflescope zero, stay versatile in daylight, and simply deploy thermal when needed without swapping optics or re-zeroing. When done right, it’s the best of both worlds.

The Operator 640 does it right.

From Armasight’s site:

• Thermal Sensor: 640×512, 12μm, <40 mK NETD
• Optical Magnification: 1x native (4x digital)
• Lens: 35mm germanium
• Display: 1024×768 HD OLED
• Detection Range: ~1300 yards (man-sized target)
• Mount: ADM QD (1.5” above rail height)
• Recoil Rating: Up to .50 BMG
• Power: Dual CR123A batteries (~4 hrs runtime)
• Weight: 1.5 lbs
• Operating Temp: -40°F to 122°F
• Housing: Rugged, sealed aluminum alloy
• Color Palettes: White Hot, Black Hot, Rainbow, Target, Sepia
• Recording: Internal photo and video storage
• Price: ~$3,999 MSRP
• Made in the USA (majority components)

The included ADM quick-detach mount is top-tier. It clicks right onto any Picatinny rail and sets the optic at exactly 1.5” centerline. Perfect for LPVOs or standard AR builds. Mounting and unmounting takes seconds, with rock-solid repeatability. Recoil rating up to .50 BMG means no worries about banging it up in the field. Many thermals aren’t rated below -4°F or above 110°F, which could be problematic in extreme conditions. I want to point out that the Operator is rated for -40°F to 122°F and is built tougher than many of the other thermals on the market.

This unit pairs exceptionally well with a 1–6x or 1–10x LPVO, especially those with adjustable diopters. The clip-on itself doesn’t have diopter focus, so you rely on your day scope’s adjustments for a clean image. Through the scope, it’s crystal clear, and your existing reticle stays in play for all aiming and holdovers.

With a 35mm germanium lens, 12-micron sensor, and <40 mK NETD sensitivity, detection and target clarity are excellent. Armasight says you’ll detect a man-sized target at 1300 yards, and in the right conditions, I believe that’s true. It’s not going to perform as well as some dedicated thermal scopes, but that’s expected. Clip-ons trade a little resolution for huge versatility.

The focus wheel is at the end of the objective and is relatively easy to manipulate while mounted. Menu buttons are low-profile, tactile, and intuitive. No guessing which one does what in the dark. I can’t tell you how often I’ve fumbled with button clusters on other optics. Not here.

Video and photo recording are built in. But here’s a critical note for folks new to clip-ons. You won’t see your reticle in the recordings because it lives in your day scope, not the thermal. That’s not a bug. It’s just how clip-ons work. You aim and shoot using the day optic’s reticle.

The Operator 640 includes a visible internal reticle overlay you can use to boresight and match your POI. Once you know where your bullet’s hitting, just move the clip-on’s display to center that impact. Simple and smart.

Cycle through white hot, black hot, rainbow, target mode, sepia, and more with a long press. There are also multiple scene modes like Forest, Detect, Sky, and Sea to tune performance based on your environment. The menus are responsive and logical.

• Built-in digital compass and cant indicator
• USB port for external battery packs or file transfer
• Accessory rail for a red dot or laser
• Fast startup time
• Weather-resistant build quality

While this will absolutely work for predator hunters or hog guys, the Operator 640 really shines in tactical or emergency-use roles. Whether you’re prepping for contingencies or clearing a property without an IR signature, the flexibility of popping it on or off your existing rifle makes it extremely practical.

Thermals aren’t great for clearing houses or CQB. They’re for people who need exceptionally good detection capability, target ID, and no light signature. With zero IR emission, thermal keeps you completely passive.

I want this kind of unit in a Faraday bag in my safe, ready to go in a bad scenario. It’s rugged, fast, flexible, and doesn’t require me to rebuild a rifle platform or dedicate a gun to night-only work.

READ MORE HERE: Two New Thermals From Nocpix – Full Video Review

The Armasight Operator 640 is a professional-grade thermal clip-on that delivers serious performance without overcomplicating anything. It mounts fast, shoots true, and records internally, all while letting you keep your favorite LPVO.

Pros:

• Excellent image quality and detection range
• U.S.-made components and recoil-tested to .50 BMG
• Simple, rugged, and intuitive
• Easy boresighting and menu navigation
• Seamless day-to-night integration
• Affordable for the performance class ($4,000 MSRP)

Cons:

• No diopter for standalone viewing (needs day optic)
• CR123 battery runtime is ~4 hours (carry spares or add external pack)
• No reticle in recordings (inherent to all clip-ons)

If you’re running an LPVO or traditional scope and want to add thermal capability without ditching your daytime glass, or you want a dead-simple contingency optic, the Operator 640 deserves serious consideration.
